Wind Speed Sensor 010C – Wind Direction Sensor 020D Introduction：

data sheet user's manual

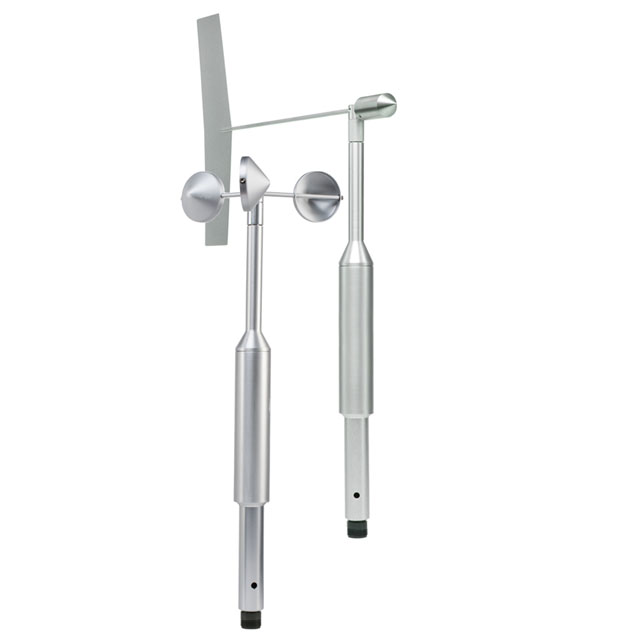

The 010C Wind Speed Sensor provides accurate and detailed information on horizontal wind speed. The lightweight three-cup anemometer is used in virtually all applications where fast response and low starting threshold(s) are of paramount importance.

The 020C Wind Direction Sensor provides azimuth data for use in micrometeorological measurements related to operational studies and research. The lightweight airfoil vane is directly coupled to a single precision potentiometer. These sensors are especially useful when a low starting threshold, a high damping ratio, or a short delay distance is required.

Both wind speed and wind direction sensors are used in environments ranging from Antarctic cold to arid desert heat. The 01OC, 010C-1, and 020C instruments meet U.S. EPA and NRC performance specifications for critical regulatory, research or scientific measurement applications.

FEATURES:

1. Low starting threshold
2. Internal heater for long bearing life
3. Low profile to minimize “sensor turbulence”
4. High damping ratio
5. Short delay distance
6. Quick-disconnect connector
7. Field-replaceable electronic components
8. Ingress Protection Level 65 (IP65)

RELIABILITY:

1. Built-in electrical field surge protection greatly reduces problems associated with static fields, near-miss lightning hits, and poorgrounding systems
2. Inclusion of Met One Instruments’ internal heater (AC use only) provides positive clean aspiration through the bearings, greatly increasing their life
3. Optional, external de-icing heater sleeve for applications where freezing rain, ice, and low wind speeds may be encountered

APPLICATIONS::

1. Climate Research
2. Ambient Monitoring
