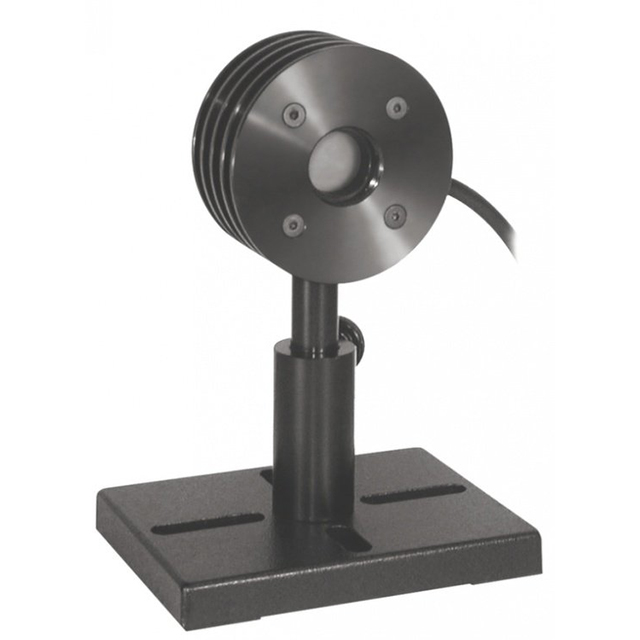

The 10A-P is a thermal power/energy laser measurement sensor for short pulsed lasers with a 16mm aperture. It can measure from 40mW to 10W and from 10mJ to 10J. It has the P type volume absorber and covers the spectral range from 0.15 to 8μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

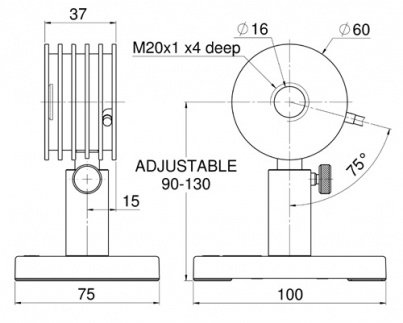

10A-P Drawing
| Absorber Type | P type |
| Aperture | ?16mm |
| Spectral Range | 0.15-8μm |
| Power Range | 40mW-10W |
| Energy Range | 10mJ-10J |
| Backscattered Power | N.A. |
| Dimensions | ?60 W x 37 D (mm) |
| Max Pulse Energy | 10J |
| Max Average Power Density | 0.05kW/cm2 |
| Response Time | 3.5 s |
| Max Energy Density (for <100ns) | 1J/cm2 |
| Max Energy Density (for 2ms) | 1J/cm2 |
| Max Average Power | 10W |
| BeamTrack Functions | N.A. |
