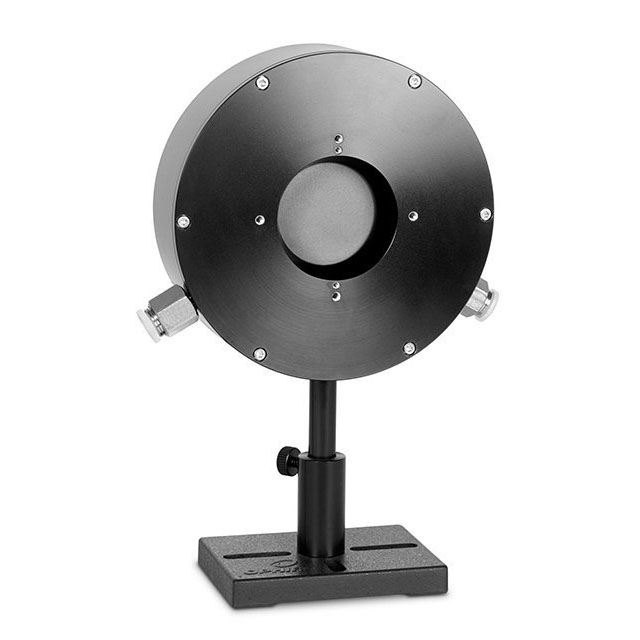

The 5000W-BB-50 is a water cooled thermal power/energy laser measurement sensor with a 50mm aperture. It can measure power from 20W to 5000W. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 20μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

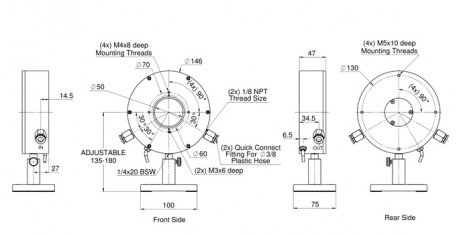

5000W-BB-50 Drawing
| Absorber Type | Broadband |
| Aperture | ?50mm |
| Spectral Range | 0.19-20μm |
| Power Range | 20W-5000W |
| Energy Range | N.A. |
| Backscattered Power | N.A. |
| Dimensions | ?146 W x 47 D (mm) |
| Max Pulse Energy | N.A. |
| Max Average Power Density | 1.7kW/cm2 |
| Response Time | 3 s |
| Max Energy Density (for <100ns) | 0.3J/cm2 |
| Max Energy Density (for 2ms) | 10J/cm2 |
| Max Average Power | 5000W |
| BeamTrack Functions | N.A. |
| Compliance | CE, China RoHS |
