Datasheet

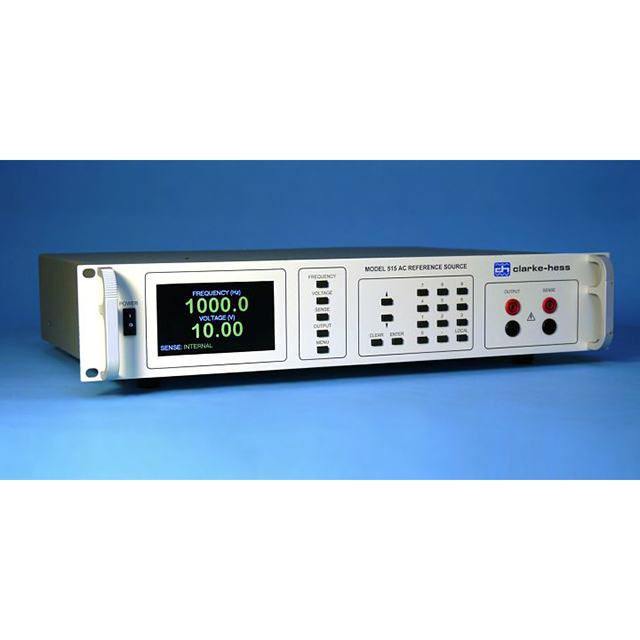

The Model 515 High Accuracy AC Reference Generator fills a need for a relatively low cost and practical solution for supplying a reference excitation to typical LVDT and Synchro/Resolver transducers. The Model 515 has built-in load sensing which, in effect, yields “zero” output impedance and virtually eliminates the effects of fluctuating output loads. With up to 15 VA of output into loads with as much as 80o of phase shift, the Model 515 is ideally suited to driving inductive loads.
The unit features remote sensing, galvanically isolated outputs, overload protection and USB digital interface. IEEE-488 control can be added as an option.
0.1% Voltage Accuracy
0.001V Resolution
Up to 15 VA Output Power
360Hz to 20kHz
Hi Resolution Color Display
Isolated Outputs
USB Std/IEEE optional
