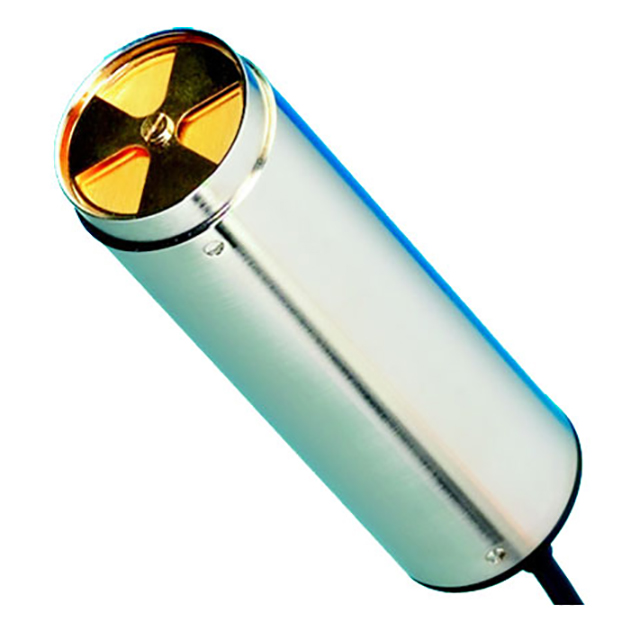

The EFM 113B is a small and handy electro field meter with a high sensitivity designed for the measurement of dc fields and static charges according to the fieldmill influence principle. Analog current output (±1mA).
Scope of delivery
Connection cable
Manual
Declaration of calibration
| Dimensions: | 120mm x 40mm (l x d) |
| Measuring range: | 5kV/m, 20kV/m, 50kV/m und 200kV/m |
| Metering precision: | 5% in a homogenous field |
| Calibration: |
In the homogenous field of a plate capacitor
plate size 200mm x 200mm, plate distance 25mm modulator system mounted centered in the plate |
| Power supply: | 9-15V DC / 80mA |
| Interface: | Analog current output ???1mA |
| Mounting: | Alumonium clamping yoke with photo thread (optional) |
| Operating time: | In one shift operation min. 2 years |
