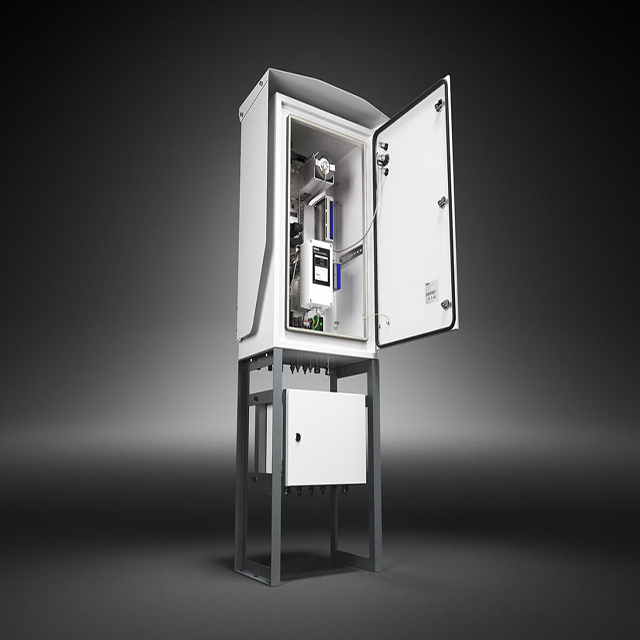

Optimus? OPT100 is a maintenance-free multi-gas DGA monitoring system that is now ready to measure synthetic ester oils. The OPT100 uses a reliable total gas pressure method to detect ambient air leaks in sealed power transformers. The approach is based on proven technology supported by Vaisala Technologies.

1. There is no need to monitor and replace carrier gas or calibrate gas
2. There is no need to replace the internal pipe or measuring assembly
3. There is no need to repair or replace fixed filters, filter wheels, films or capillaries

Main Advantages:

Can operate normally in harsh environment

Reliable performance, Optimus? OPT100 for you to interpret. The system is equipped with stainless steel tube, IP66 protection grade housing, temperature controlled oil and gas treatment, magnetic pump and valve; It can operate without maintenance or replacement of consumables; The Optimus? OPT100 tolerates a wide range of climatic conditions from the Arctic to the tropics.

Intelligent operation simple

Optimus? OPT100 provides you with an integrated Web user interface. No additional software is required. Its intelligent design in the field enables quick installation by simply connecting the tubing, starting the device, and connecting to the user interface. In addition, self-diagnosis allows the monitoring system to automatically restart after a power outage.

A safe choice

Optimus? OPT100 is guaranteed for you. Its automatic calibration function can realize stable online measurement. No need to recalibrate at the factory.

The device can also operate in synthetic ester oil

The Vysala Optimus? OPT100 meets the requirements for synthetic ester insulators and will begin delivery this winter.

Ac and DC power options

The optional DC Optimus, which meets the IEC61010 safety certification as the AC model and has the same level of surge protection, is coming online.
