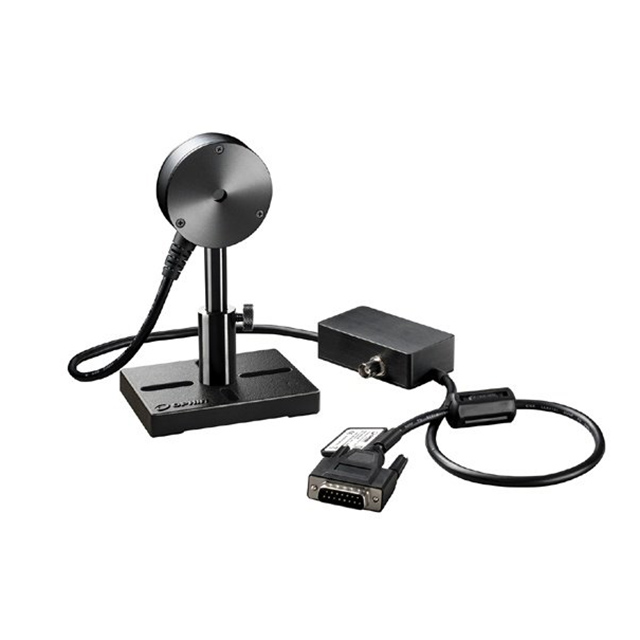

RM9 THz Radiometer is a probe used to measure low-power continuous or quasi continuous wave light sources. This probe is specifically designed for use in the terahertz range. RM9-THz uses a pyroelectric probe and a lock-in (phase-locked) amplifier, with (in conjunction with) an 18Hz chopper (not included, using RMC1 or other choppers). The power range of RM9-THz is from 100nW to 100mW, with an aperture of 8mm, covering a spectral range of 0.1THz to 30THz.
| Absorber Type | Pyro with THz w/o Chopper |
| Aperture | ?8mm |
| Spectral Range | 0.7-10THz |
| Power Range | 100nW-100mW |
| Energy Range | N.A. |
| Dimensions | ?62 W x 21 D (mm) |
| Max Pulse Energy | N.A. |
| Max Average Power Density | 5W/cm2 |
| Response Time | 3.5S |
| Max Energy Density (for < 100ns) | N.A. |
| Max Energy Density (for 2ms) | N.A. |
| Max Average Power | 100nW |
