User's Manual Technical Drawing

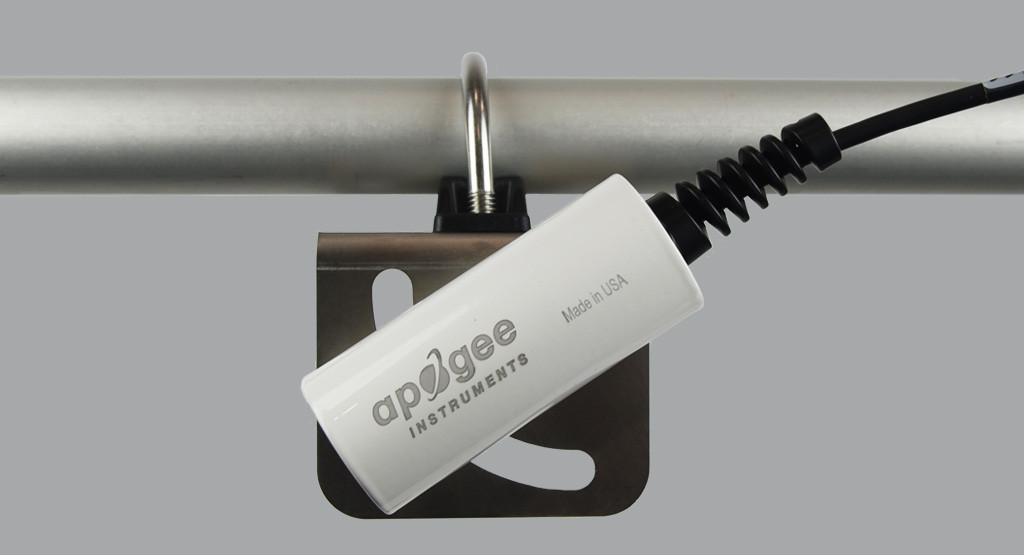

The SI-431 has an SDI-12 digital output and high-quality cable terminating in pre-tinned pigtail leads for easy connection to dataloggers and controllers. The sensor has a 14° half-angle field of view and a response time of 0.1 seconds. The solar shield design has been updated for better mounting (see product pictures for more information). Typical applications include plant canopy temperature measurement for use in plant water status estimation, road surface temperature measurement of determination of icing conditions, and terrestrial surface (soil, vegetation, water, snow) temperature measurement in energy balance studies. Sensor includes IP68 marine-grade stainless-steel cable connector 30 cm from head to simplify sensor removal and replacement for maintenance and recalibration. The SI-431 is designed to be mounted with an Apogee AM-250 commercial-grade mounting bracket.

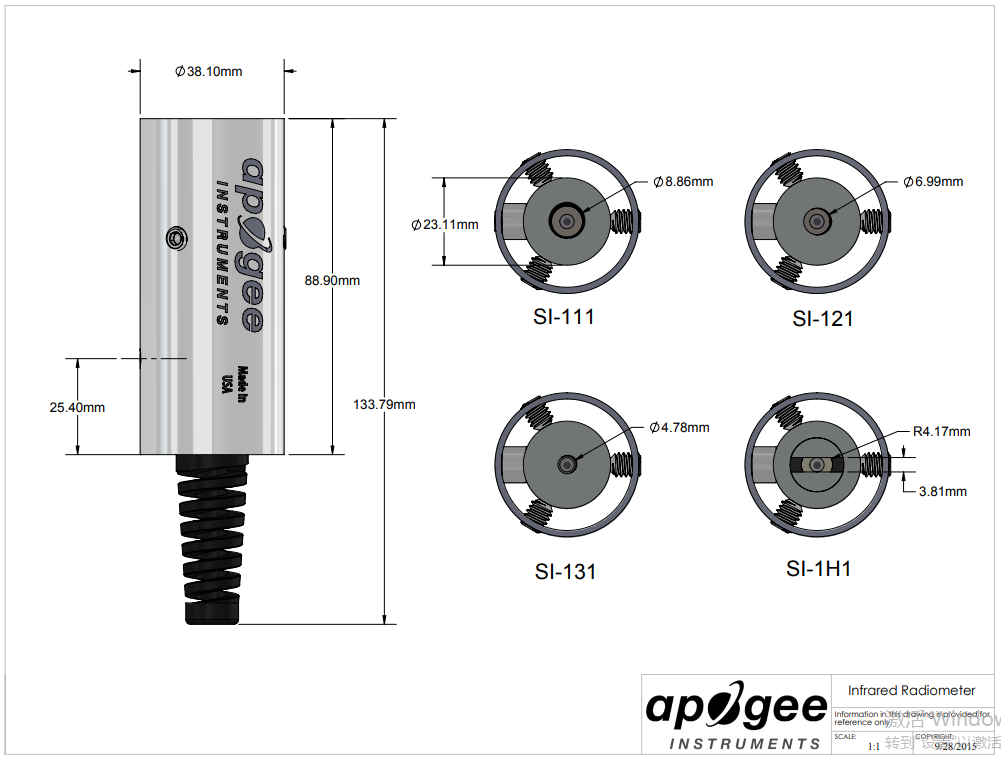

SI-431 Drawing
| Input Voltage Requirement | 4.5 to 24 V DC |
| Current Draw | 1.5 mA (quiescent), 2.0 mA (active) |
| Calibration Uncertainty (-30 to 65 C) | 0.3 C, when target and detector temperature are within 20 C |
| Calibration Uncertainty (-40 to 80 C) | 0.6 C, when target and detector temperature are different by more than 20 C |
| Measurement Repeatability | Less than 0.05 C |
| Stability (Long-term Drift) | Less than 2 % change in slope per year when germanium filter is maintained in a clean condition |
| Response Time | 0.6 s, time for detector signal to reach 95 % following a step change, fastest data transmission rate for SDI-12 circuitry is 1 s |
| Field of View | 14° half-angle |
| Spectral Range) | 8 to 14 μm; atmospheric windown |
| Operating Environment | -50 to 80 C; 0 to 100 % relative humidity (non-condensing) |
| Dimensions | 23 mm diameter, 60 mm length |
| Mass | 190 g (with 5 m of lead wire) |
| Cable | 5 m of four conductor, shielded, twisted-pair wire with TPR jacket (high water resistance, high UV stability, flexibility in cold conditions), aditional cable available |
| Warranty | 4 years against defects in materials and workmanship |
| Manufactured | Made in the USA |
