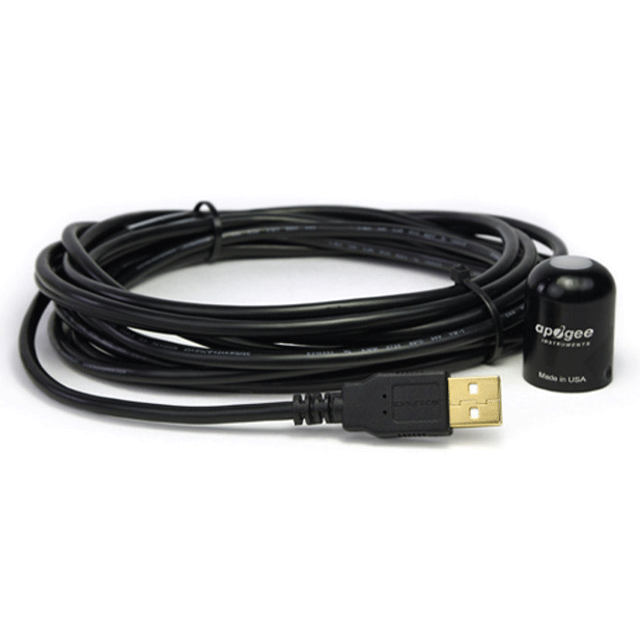

SP-420 Smart Pyranometer | USB Output

Updated:2025-03-13

Brand: APOGEE
Model:SP-420
Description: The new SP-420 smart pyranometer can be connected directly to a computer (Windows or macOS X) for taking spot measurements or graphing and datalogging real-time shortwave radiation using the included
Data download

Feedback
WeChat

QQ

Online Service

Product Details

SP - 420 intelligent total radiation table overview | USB output：

User's Manual

Internal Data Storage

The sensor has internal data storage capability with the ability to hold up to 10,000 measurements. This allows the sensor to collect data while connected to a stand-alone 5 V DC power supply such as a USB wall adapter.

No Datalogger Required

The sensor can be connected to a desktop or laptop computer via USB 2.0 type A plug, to be used with the ApogeeConnect software (Windows compatible, XP and later; Mac compatible, 10.10 and later). The included Apogee software gives the user control of data logging and calibration settings, provides a real time output display and graph of shortwave radiation measurements and allows the data set to be saved as a csv file.

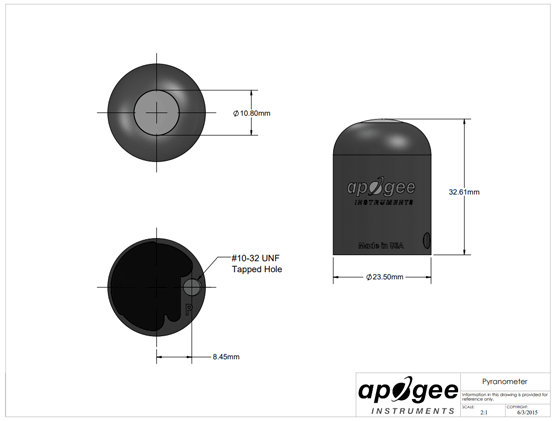

SP-420 drawing：

Specifications of SP-420:

ISO 9060:2018	Class C (fast response)
Power Supply	5 V
Current Draw	61 mA when logging
Resolution	0.1 W mˉ2
Calibration Factor	Custom for each sensor and stored in firmware
Calibration Uncertainty at 1000 W mˉ2	Less than 3 %
Measurement Repeatability	Less than 1 %
Non-stability (Long-term Drift)	Less than 2 % per year
Non-linearity	Less than 1 % (up to 2000 W mˉ2)
Response Time	Software updates every second
Field of View	180?
Spectral Range	360 to 1120 nm (wavelengths where response is 10 % of maximum)
Directional (Cosine) Response	± 5 % at 75? zenith angle
Temperature Response	0.04 ± 0.4 % per C
Operating Environment	-40 to 70 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m
Dimensions	24 mm diameter, 33 mm height
Mass	90 g
USB Cable	4.5 m (15 ft)
Warranty	4 years against defects in materials and workmanship
Manufactured	Made in the USA
