STK1-05 K Type Thermocouple Probe (5m cable)

Updated:2025-03-13

Brand: Delta-T
Model: STK1-05
Description: The STK1 is a general purpose temperature probe based on a nickel-chromium (Chromal)/nickel-aluminium (Alumel), K type, thermocouple sensor.The thermocouple is housed in a stainless steel sheath of 4.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

STK1-05 K Type Thermocouple Probe (5m cable) Description：

User's Manual

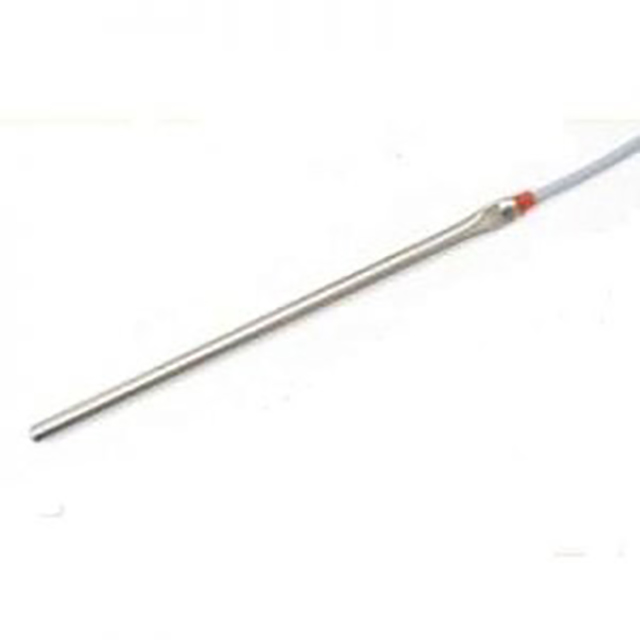

The STK1 is a general purpose temperature probe based on a nickel-chromium (Chromal)/nickel-aluminium (Alumel), K type, thermocouple sensor.

The thermocouple is housed in a stainless steel sheath of 4.8 mm nominal outside diameter, 125 mm long, connected to a 5 m cable.

Thermocouple type – K

STK1-05 K Type Thermocouple Probe (5m cable) Specification：

Type	Description	Probe type	Probe accuracy (°C)	Probe range (°C)	Cable type	Number of cores	Cable range (°C)	Data logger accuracy
Type	Description	Probe type	Probe accuracy (°C)	Probe range (°C)	Cable type	Number of cores	Cable range (°C)	DL6 ^(a) (°C)	GP1 ^(b) (°C)	GP2 ^(c) (°C)
ST1-05	Soil temperature probe 2k thermistor, stainless steel sheath, 6s response.	2k	± 0.2	-50 to 150	PVC	2	-10 to +105	± 0.4	± 0.4	± 0.09
ST2-05	Precision temperature probe, 2k thermistor, stainless steel sheath, 6s response.	2k	± 0.1(f)	-50 to 150	PVC	2	-10 to +105	± 0.4	± 0.4	± 0.09
ST3-05	Sealed thermistor Probe, 2k thermistor, with sealed sheath and leads suitable for continuous immersion in fresh water.	2k	± 0.2	-20 to +80	Poly-ethelene	2	-20 to +80	± 0.4	± 0.4	± 0.09
ST4-05	Soil temperature probe 10k thermistor, stainless steel sheath, 6s response, IP67.	10k	± 0.2	-10 to +40	PVC	2 ^(d)	-10 to +40	Not available	± 0.14	± 0.08
STK1-05	General purpose K type thermocouple probe, stainless steel sheath.	k	± 1.5	-50 to 250	PTFE	2	-50 to +250	Not available	Not available	± 1.0
GT1-05	General purpose temperature probe, 2k thermistor.	2k	± 0.2	-50 to 150	PVC	2	-10 to +105	± 0.4	± 0.4	± 0.09
MT2-05	Fast response temperature sensor, 2k, suitable for leaves	2k	± 0.1 ^(e)	-50 to 150	Vy/TEFL ^(f)	4	Not available	± 0.4	± 0.4	± 0.09
MT3-05	Flexible mini-thermistor Probe, 2k thermistor.	2k	± 0.1 ^(e)	-50 to 150	Nylon - PVC	2	-10 to +105	± 0.4	± 0.4	± 0.09
AT2-05	Air temperature sensor, 2k thermistor.	2k	± 0.1 ^(e)	-50 to 150	PVC	2	-10 to +105	± 0.4	± 0.4	± 0.09
