Baker Hughes DM5E Corrosion Thickness Gauges Description：

Datasheet

The DM5E offers significant improvement in performance over previous corrosion thickness gauges in terms of better thickness measurement stability and repeatability at normal and elevated temperatures. It has been designed for operation in the harshest working environments, performing wall thickness measurements on pipelines, pressure vessels and storage tanks in the oil and gas industry, as well as in the petrochemical and power generation sectors.

Compatible with our best-in-the-industry probes, the DM5E corrosion thickness gauges represent the highest standard of precise, user-friendly thickness measurement. Lightweight and ergonomically designed for everyday use, their intuitive interface and simple calibration give you measurements you can trust, even in the harshest working environments.

The most commonly used probes (501, 503, 512, FH2E, and 590) are already programmed onto the device, simplifying your operations for more accurate, reliable readings. Choose from three levels of functionality to determine the capability — and the price — that works for you.

All versions of the DM5E have the same user-friendly operator keypad interface

A new set of ultrasonic probes was developed for the DM5E family to provide the instruments with optimized performance

With the dual-multi measurement feature that both the DM5E and the DM5E DL offer, there is no need to remove any protective coating

Build-in datalogger of the DM5E DL, having the capacity to store up to a 50,000 reading in grid and linear files

DM5E basic

The basic version allows for simple, handheld operation via a user-friendly interface. Rugged housing stands up to the harshest working environments, and the sealed, watertight and dust-proof membrane keypad features a minimum of function keys and arrow keys. Specified to EN 15317, this model incorporates a wide range of features, including Min/Max capture, B-Scan generation, alarms, and differential thickness measurement for instant comparison between measured and nominal thickness.

Ergonomically designed with a weight of just 223g

AA batteries allow up to 60 hours of operation

LCD data display is backlit for visibility in all lighting conditions

DM5E

DM5E incorporates all the features of the DM5E Basic but also offers the dual multi operating mode — an invaluable tool in measuring thickness of metal through coatings. There is no need to remove the coating at the measuring point, saving you time and money. Users can upgrade from DM5E Basic to DM5E in the field. Dual multi is only viable when using DA501 or DA512 probes.

DM5E DL

The DM5E DL is identical to the DM5E but features a built-in data logger supporting linear and grid-style data file formats, capable of holding up to 50,000 readings. Files can be transferred to a PC via a Mini USB port. Files can also be imported directly into Microsoft Excel through a macro. All alphanumeric data for filenames and notes is directly entered via the keypad. Both the basic and standard versions are field-upgradable to become DL versions.

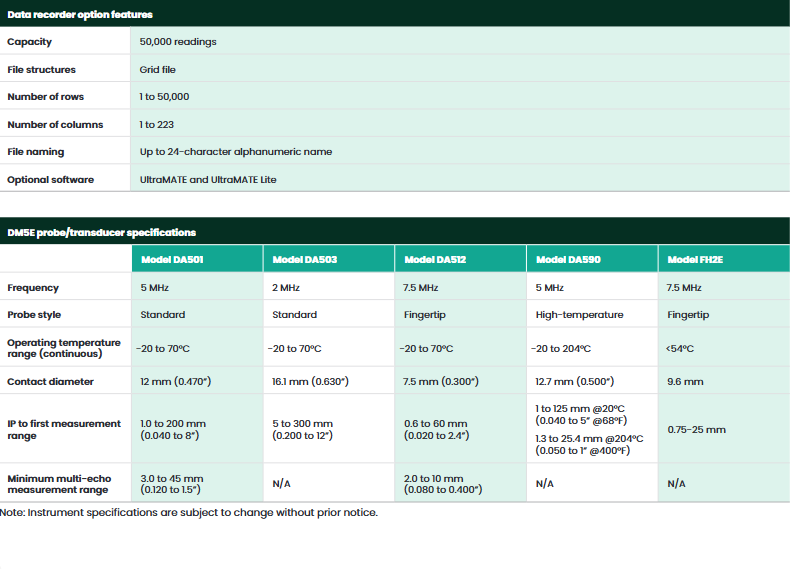

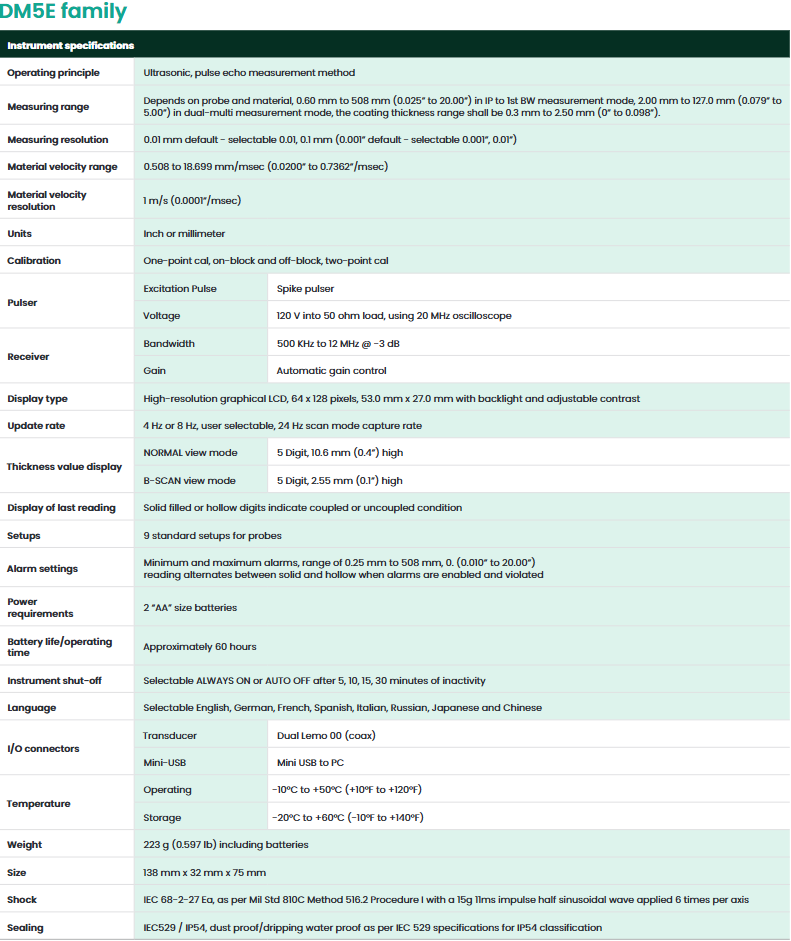

Specifications
