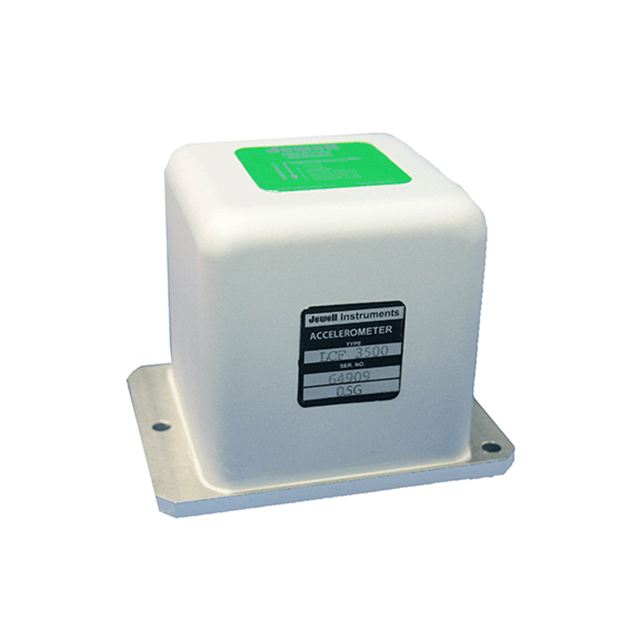

Jewell LCF-3500 Series Linear Accelerometer

Updated:2025-09-06

Brand: Jewell
Model:LCF-3500
Description: The Jewell LCF-3500 Series Flexure Suspension Fluid Damped Tri-Axial Accelerometer is a ±0.5G to ±5G device designed for applications where high levels of shock and vibration are present. LCF units ar
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell LCF-3500 Series Linear Accelerometer Description：

Datasheet Outline Drawing

The Jewell LCF-3500 Series Flexure Suspension Fluid Damped Tri-Axial Accelerometer is a ±0.5G to ±5G device designed for applications where high levels of shock and vibration are present. LCF units are characterized by excellent turn on repeatability and very low hysteresis.

Specifications

Input Range (g)¹	±0.50	±2.0	±5.0
Full Range Output (Volts ±0.5%)	±5	±5	±5
Non-linearity (%FRO max)²	0.05	0.05	0.05
Scale Factor (Volts/g, nominal)	10.0	2.50	1.00
Scale Factor Temperature Sensitivity (PPM/°C maximum)	100	100	100
Bias (g maximum)	0.005	0.005	0.005
Bias Temperature Sensitivity (μg/° maximum)	100	100	100
Natural Frequency (Hz minimum)³	30	30	30
Bandwidth (-3dB, Hz, minimum)	30	30	30
Input Axis Misalignment (° maximum)	1.0	1.0	1.0
Resolution & Threshold (μ)	10	10	10

Dimensions	3.75 × 2.88 × 2.96 in
Features	? ±0.5g to ± 5.0g Full Range ? Filtering 5 to 100 Hz Bandwidth Available ? Exceptional Bias & Scale Factor ? High Level ±5 Vdc Output ? 1,000g Shock Capability ? Tri-Axis
Applications	? Geophysical Testing ? Railcar Acceleration Control ? Railcar Deceleration Control ? Ocean Buoy Acceleration Sensing ? Aircraft Stability Control ? Aircraft Flight Testing ? Vehicle Roadway Profiling ? Tri-Axis Acceleration Applications ? Aircraft Flight Data Recorder

Number of Axes	3
Input Voltage Range (VDC)	±12 to ±18
Input Current (mA, maximum)	±45
Output Impedance (Ω, nominal)	100
Noise (Vrms, maximum)	0.002

Operating Temperature Range	-40°C to +80°C
Storage Temperature Range	-60°C to +90°C
Vibration	20 grms
Shock	1000g, 1 msec, ? sine
Seal	Epoxy
